PATCH CORDS & MOLDED CABLE ASSEMBLIES
CABLE CLAMP BANDS AND Y JUNCTIONS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

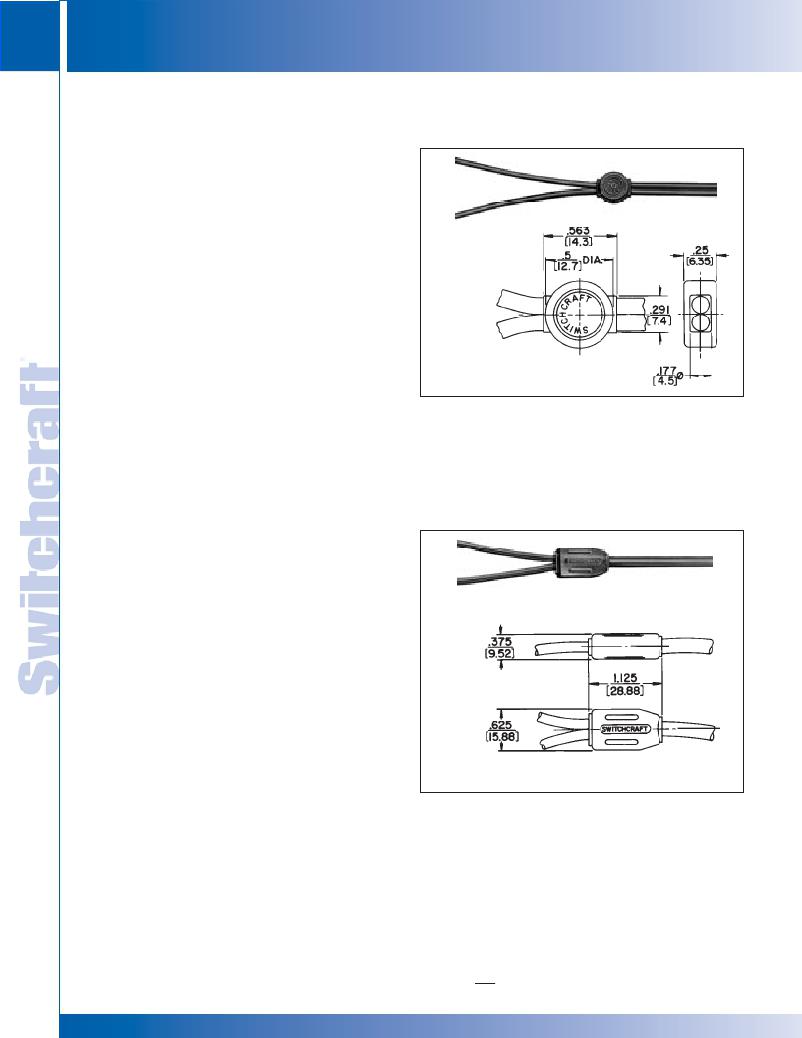

MOLDED CABLE ASSEMBLIES
WITH CABLE CLAMP BANDS
SPECIFICATIONS
MOLDED BAND
Housing: Plastic. Inserts can be added to our molds to
include customer’s name or trademark. Call for details.
Standard Colors: Gray, white, black, brown. Other colors
available on special order.
CABLE*
Standard Parallel Cable (lamp cord) –Type W-1033-1.
Standard Shield Cable –Type W-1072.
ST-91 DESIGN FEATURES
? For use on stereo connecting cables and on monaural
and stereo headset cables.
? Prevents further separation of individual leads on
“Rip” type cordage.
? Can be used as “Y” junction when used with standard
shielded cable such as Switchcraft W-1072; or as a cable
clamp for general purpose with Switchcraft W-1033
and W-1050.
? Special assemblies can be built to OEM needs, using
various terminal lugs, special receptacles to phone plugs
or connectors.
ST91
Termination
Code: 94
*NOTE: See Standard Cable Chart on page 260 for details.
Special Cable: We will build assemblies on cable furnished by
you (maximum diameter varies for types) or on cables we
purchase to your specifications. Jacket must have temperature
rating of 60°C minimum.
MOLDED CABLE ASSEMBLIES
WITH “Y” JUNCTIONS
SPECIFICATIONS
Y JUNCTION
Housing: Molded Plastic. Inserts can be added to our molds
to include customer’s name or trademark.
Standard Colors: Gray, white, black, brown. Other colors
available on special order.
CABLE*
Standard Shielded Cable –Type W-1000-1.
Standard Shielded Cable –Type W-1021-1.
ST-90 DESIGN FEATURES
? For use on binaural and stereophonic headphones.
? Accommodates 1- and 2-conductor shielded cables.
? Durable, strain and humidity resistant.
? Special assemblies can be built to OEM needs, using
terminal lugs, special receptacles to phone plugs or
connectors.
ST90
Termination
Code: 93
Larger “Molded Y” available. Ask for ST94.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
